In order to allow for robust technical integration of applications like learning management systems or mobile applications, Opencast offers an Application API (AAPI) to allow those applications to provide access to and management of resources exposed through the API. The API has been designed and implemented to support large numbers of clients, each with considerable amounts of requests per time interval. In addition, security has been a focus to ensure protection of the managed data and to support use cases promoting differing views on the managed data.

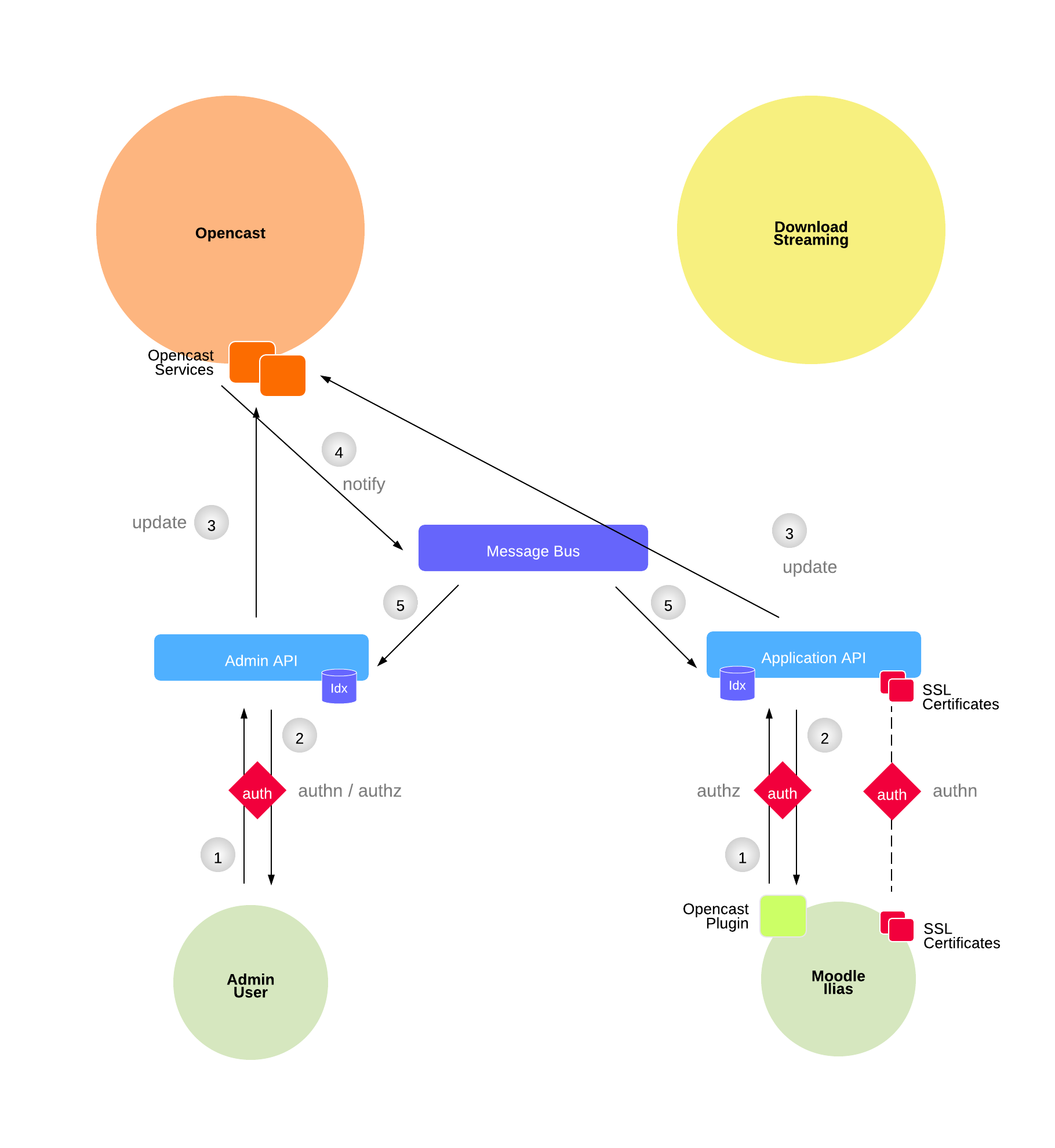

The Application API has been implemented as an abstraction layer to multiple internal APIs that the underlying application (Opencast) offers for the manipulation of resources like series, events or users (see Figure 1: Architectural overview).
Authentication and Authorization
The API features a dedicated security layer that is in charge of providing support for a variety of authentication and authorization mechanisms. Additionally, the security layer provides means for delegation of authorization to the client application in cases where the API client needs to manage its own set of assets with implicit access control. These concepts are documented in greater detail in the following Authentication and Authorization chapters.
Requests for data
The abstraction layer is backed by a dedicated index, which is kept up-to-date using Opencast’s message broker. When a request to an API method is received (1), the data is compiled using the index and returned to the client (2). Since the index is scalable and optimized for performance, a large number of requests can be processed per time interval. The corresponding requests along with the potential responses are defined later on in the API chapter.
Processing of updates
Whenever a client sends updated information to the Application API, it will forward that information to the corresponding Opencast services (3), which in turn will process the data and send messages to the message bus accordingly (4). The messages are consumed by the Application API’s data store and can be served to its clients from then on. The corresponding requests along with the data structures and potential responses are defined later on in the API chapter.
Requests are authenticated and authorized (1), and corresponding responses are sent back to the client (2). Updates are passed on to the backing application services and the modified data is then received through the application’s message infrastructure (4), (5).
The Application API has been implemented using the Restful State Transfer paradigm to expose resources of the underlying system in the URL space that are then accessible using the HTTP protocol and verbs
Since as part of the communication, the API is used to transfer potentially sensitive data between the client and the server including the username and password as part of the Basic Authentication protocol, the API will usually only be available over a secure HTTPS connection only.
The API is located at the
/api namespace on the Opencast admin node. This results in all requests to the Application API starting with
https://<hostname>/api, where the hostname is depending on the installation and tenant (see “Multi Tenancy”).
The API is versioned so that applications developed against one version of the API won’t break with enhancements or replacements of existing versions as long as they stay on the same major version. The set of currently supported versions as well as the current version are exposed through REST methods as part of the meta API.
The application API is following the semantic versioning standard, which is suggesting the use of versions of the form
x is the major version,
y is the minor version and
z is the patch level.
|Major||Changes are potentially backward incompatible and require changing client code.|
|Minor||Functionality is added in a backwards-compatible manner.|
|Patch||Bugfixes applied in a backwards-compatible manner.|
As a consequence, the API is expected to be backwards compatible between minor version upgrades, including the patch level. This means that a client that has been developed against version 1.0.0 of the api will work with version 1.1.3 as well. This however may not be true going from version 1.1.0 to 2.0.0
With Opencast being a multi tenant application, the application API reflects that characteristics as well. Requests are mapped to individual tenants by matching the requests’s target hostname against the list of tenant hostnames.
