The Application API’s security layer is designed to support a multitude of mechanisms for authentication such as api keys, digest authentication and others. While the current implementation only supports basic authentication, further authentication mechanisms may be added in the future.

Basic Authentication

The Application API is protected by basic authentication, requiring a user and a password be sent in the form of the standard HTTP Authorization header. (see Figure 2). In the header, the username and password are sent encoded in Base64 format. The incoming requests are matched against an existing user whose password needs to match with the one that is found in the Authorization request header.

NOTE: Basic authentication is not activated by default, please activate it in the security settings (etc/security/mh_default_org.xml) before using the Application API.

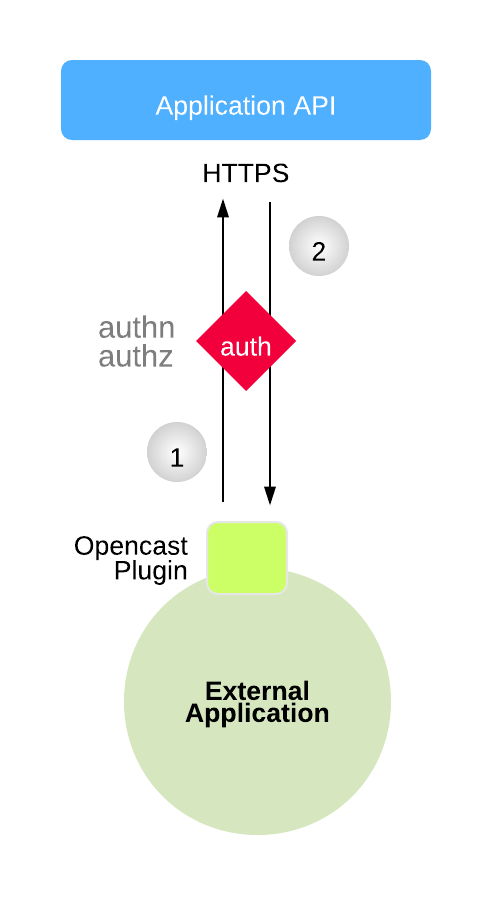

Figure 2: Authentication and
 authorization based on Basic

Protection of authentication data

Since Base64 is by no means regarded as encryption in the sense of security, it is strongly recommended to only offer access to the Application API over HTTPS rather than over HTTP in order to avoid unprotected transmission of the username and password via the Authorization header.

Validation criteria

When initiating the connection, the Application API analyzes the header and extracts the username to match against an existing API user. If that user is found, the connection is authenticated, otherwise it’s rejected.
